D-Line is a UK company with a global reputation for innovative cable management products. Their range includes the world’s fastest cable trunking systems, as used by trade and consumers, to hide and protect cables in ways that blend with modern surrounds.

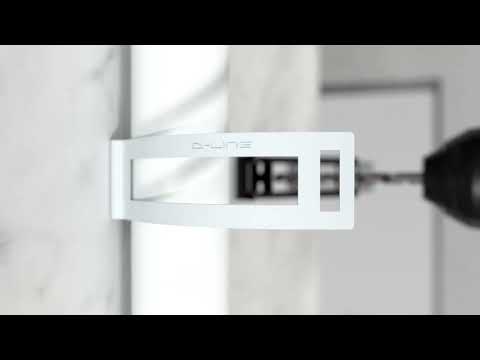

The DLine SAFE-DCOND20W/20 is a Safe-D conduit saddle which is suitable securing cables in 20mm and 25mm outer diameter PVC and galvanised conduit installations. This product has a >1200ºC melting point, has a unique single piece fixing with only one screw required and has a non-corrosive finish for ensured durability. For user convenience and ease of installation, this saddle has no separate lid meaning the conduit and cables are held by the wrap-design, which has an end tab that simply fits through the opposing slot to enable a secure lock.
Dimensions: 86.19 x 20 x 23mm (L x W x H).
|Conduit Fixed|Description|Type (Cable Baskets)||Locking|
|Conduit Fixed|Features|Fixing Type||Screw|
|Conduit Fixed|Material & Finish|Material||Steel|
|Conduit Fixed|Material & Finish|Colour||White|
|Conduit Fixed|Dimensions|Angle||90 Degree|
|Conduit Fixed|Dimensions|Length Min Max||86.19|86.19 mm|
|Conduit Fixed|Dimensions|Height||23 mm|
|Conduit Fixed|General|CE Approved||N|
|Conduit Fixed|General|Standards||BS 5839-1:2007|
|Conduit Fixed|Description|Type||Fire Rated|
|Conduit Fixed|Dimensions|Length||86.19 mm|
|Conduit Fixed|Features|Fixings Included||N|
|Conduit Fixed|Material & Finish|Finish||Coated|
|Conduit Fixed|Dimensions|Nominal Width||20 mm|
|Manufacturer||D-Line (Europe) Limited|
